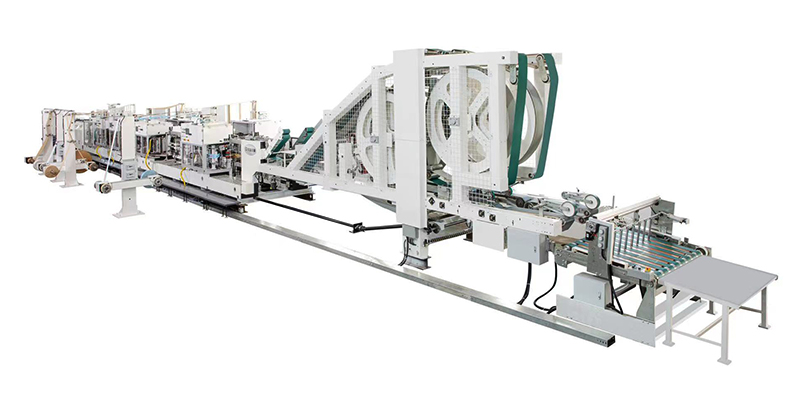

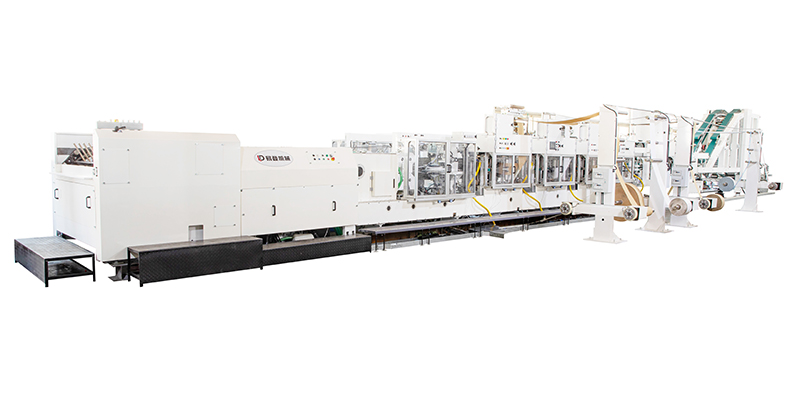

Valve Bag Bottomer Machine
Valve Bag Bottomer Machine
Multi-wall paper bag bottoming machine for valve bags and open-mouth bags used in the construction, chemical and food industries
Max. speed
300 bags/min
Bottom width
90-250mm
Bag width
300-720mm
Bag length
350-1650mm
We focused on reducing customer complaints during the final use of valve bags in the design of our valve bag bottomer machine. Through innovative design, stable operation of the main conveyor belt is ensured, with precision control within 1mm. This precision extends to the vertical cutter, where cutting errors are kept within 1mm. The world-first online adjustable vertical cutter allows for easy adjustments without stopping the machine. These innovations provide strong protection against dust emissions during the bag filling process, ensuring proper sealing and preventing powder leakage.
The valve bag bottomer machine also handles small-batch, multi-variety paper bag production efficiently. Changing bag specifications is quick and simple, with one-click adjustments, eliminating the need for gear replacements.
The valve bag bottomer machine is ideal for packaging a variety of materials, including:

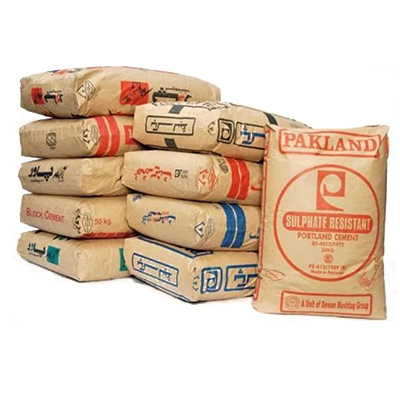

- Cement Industry: Packaging for Portland cement, white cement, dry mixed cement, and premixed products
- Mining Industry: Packaging for calcium carbonate, gypsum, lime, and other powdered and granular materials
- Chemical and Petrochemical Industry: Packaging for building chemicals, casting powders, polymer granules, fertilizers, and organic fertilizers
- Food Industry: Packaging for flour, starch, grains, sugar, beans, and other food products
- Agriculture: Packaging for animal feed, seeds, coal, and other agricultural products
Improve production efficiency with high-performance packaging solutions.
Contact us today to explore how the Valve Bag Bottomer Machine can enhance your packaging process.

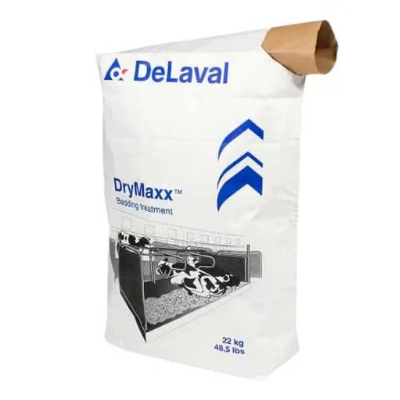

Applicable Bag Types
Open-Mouth Paper Bag
Kraft Paper Valve Bag with Thumb Notch
Inner Sleeve Valve Bag
Hot-Melt Glue Sealed Paper Valve Bag
Ultrasonic Sealed Paper Valve Bag
Specifications
| Model | YD-2018-18 | YD-2818 | YD-2825 |
| Max. speed | 200 bags/min | 300 bags/min | 300 bags/min |
| Bottom width | 90-170mm | 90-180mm | 90-250mm |
| Bag width | 300-600mm | 300-600mm | 300-720mm |
| Bag length | 410-1300mm | 410-1300mm | 410-1450mm |
| Center distance | 260-1000mm | 200-1000mm | 200-1350mm |
| First valve sheet length (optional) | 90-270mm | 90-270mm | 90-270mm |
| Second valve sheet length (optional) | 90-270mm | 90-270mm | 90-270mm |
| Weight | 45T | 50T | 60T |

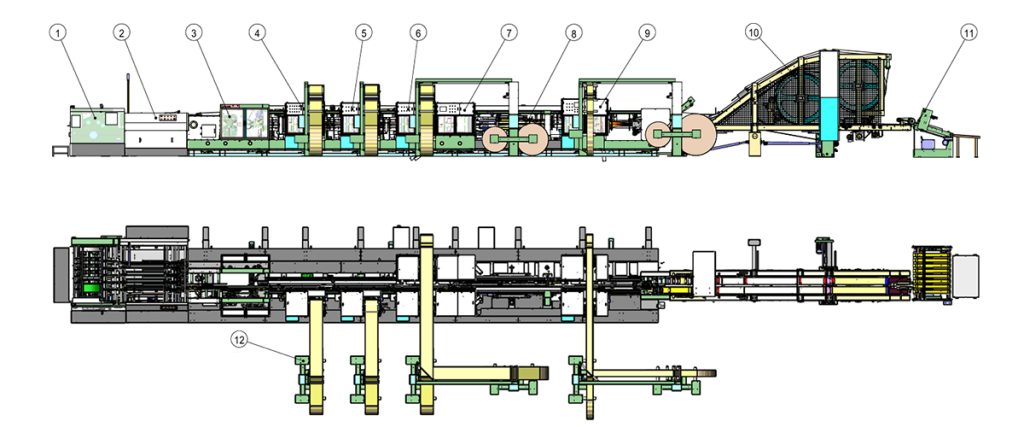

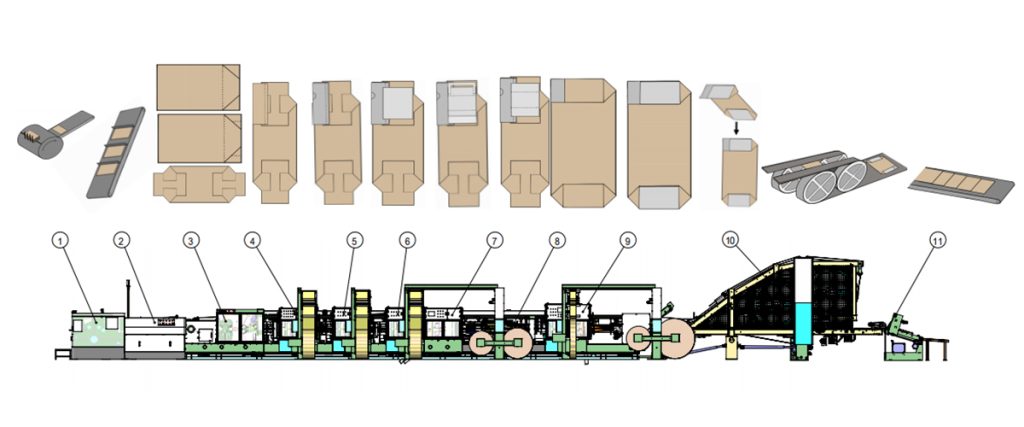

Machine Construction
| 1. Feeding | 2. Tube Aligning | 3. Creasing & Bottom Opening | 4. First Valve Unit |
| 5. Second Valve Unit | 6. Internal Patch Inserting | 7. Bottom Pasting | 8. Bottom Forming |
| 9. Bottom Reinforcing Patch Inserting | 10. Pressing | 11. Counting & Stacking |
Features
Innovative Design
The newly designed valve bag bottomer machine uses analog digital control with a tool-free adjustment system. It features 50 servo motors, allowing for one-click switching between different paper bag specifications.
European-Sourced Components
20% of the components are sourced from Europe, featuring a synchronous belt drive design that requires no lubrication, meeting stringent pharmaceutical and food-grade workshop standards.
AI Vision Detection
Our innovative use of AI vision detection ensures quality control. The system automatically rejects bags if they are placed upside down, if the bottom size deviates too much, or if external reinforcement strips are missing, effectively reducing customer complaints.
Moisture Control
To manage moisture content in paper bags, we continuously improve the equipment. The valve bag bottomer machine now uses chemical adhesives, enabling faster drying of the bags and preventing issues like yellowing and mold.
Valve Bag Production Line Solutions

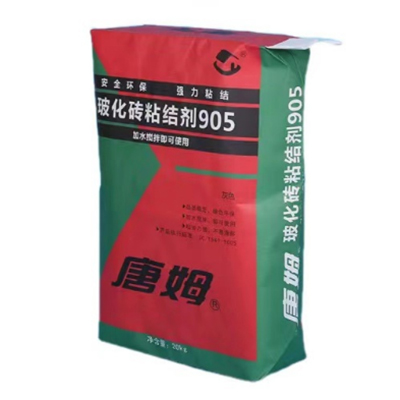

Building Material Paper Bags

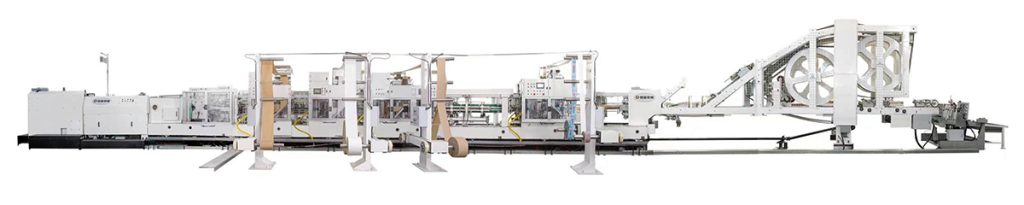

This building material paper bag production line consists of the YD-5860 tuber machine and the YD-2018-18 bottomer machine, designed for producing valve bags for cement, dry mortar, gypsum powder, wall putty, and more.
- High-Quality Components: Core components of the equipment are sourced from well-known brands in Germany, Italy, and other countries.
- High Production Speed: The production speed can reach up to 450 bags/min, efficiently meeting production demands while reducing labor costs.

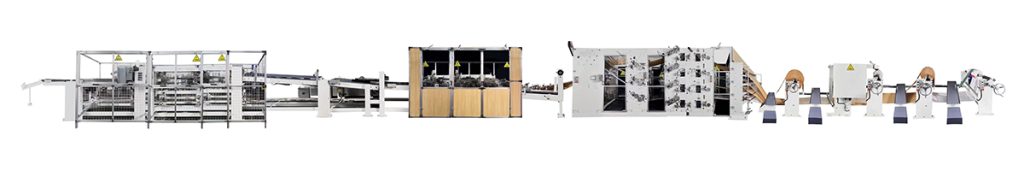

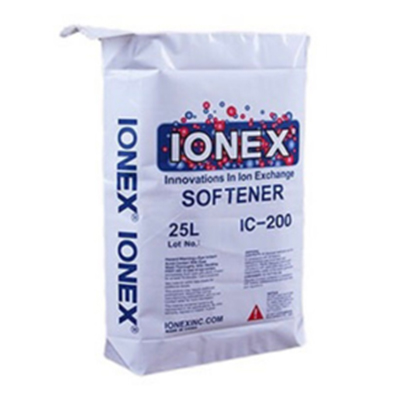

Chemical Paper Bags
Chemical valve bags are known for improving packaging efficiency, ease of transportation, strength, and low damage rates.
- Automatic Sealing Equipment: The valve bag production line typically includes automatic sealing equipment, ensuring the valve is tightly sealed to prevent material leakage and reduce manual intervention.
- High Production Speed: The production speed can reach up to 450 bags/min, handling large-scale packaging tasks and meeting high-volume production demands.
- Precise Weight Control: The weight of the bags is accurately controlled, ensuring each bag contains the correct amount of material, preventing over or under-filling.
Food Paper Bags
The food paper bag production line consists of the tuber machine YD-5860 and the bottomer machine YD-2818, designed for producing valve bags for flour, tea, chocolate powder, pet food, corn, beans, and other packaging needs.
Additionally, we provide equipment tailored to meet your production volume requirements, ensuring optimal production efficiency. We also offer complete factory solutions and related auxiliary equipment, such as overhead cranes, forklifts, and hydraulic balers.
