Building Material Paper Bag Machine

Building Material Paper Bag Production Line

Multi-wall paper bag making machine for cement bags, gypsum bags, dry mortar bags and wall putty bags

Building Material Paper Bag Machine

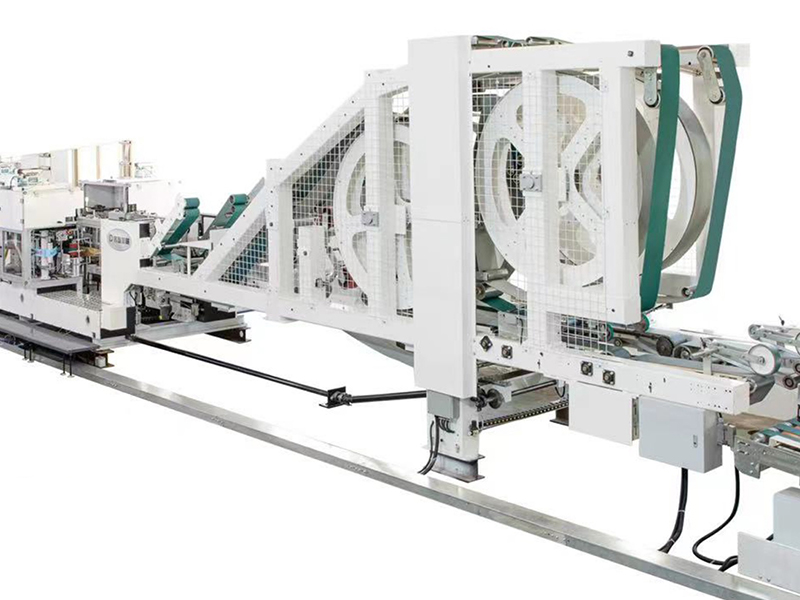

This building material paper bag production line consists of the YD-5860 tuber machine and the YD-2018-18 bottomer machine, designed for producing valve bags for cement, dry mortar, gypsum powder, wall putty, and more. The building materials are fed from the top or bottom valve, and after filling the material, the bags automatically form into a rectangular shape. These valve bags are known for their strength, reliability, easy transport, and aesthetic appeal.

Additionally, we offer customized equipment based on your production volume needs, providing machines with matching speeds to better meet customer requirements. We also offer complete factory solutions, including auxiliary equipment such as overhead cranes, forklifts, and hydraulic balers.

Boost your production efficiency with tailored solutions.
Contact us today to learn how the building material paper bag production line can meet your packaging needs.

Specifications

Building Material Paper Bag Machine

Tuber Machine YD-5860

  • Tube length: 410-1250mm
  • Max. speed: 450 tubes/min
  • Tube width: 300-600mm
Building Material Paper Bag Machine

Bottomer Machine YD-2018-18

  • External reinforcement patch length (optional): 250-400mm
  • Max. speed: 200 bags/min
  • Bottom width: 90-170mm
  • Bag width: 300-600mm
  • Bag length: 350-1300mm
  • Center distance: 260-1000mm
  • First valve sheet length (optional): 90-270mm
  • Second valve sheet length (optional): 90-270mm
  • Internal reinforcement patch length (optional): 200-350mm

Features

High-Quality Components
Core components of the equipment are sourced from well-known brands in Germany, Italy, and other countries.

High Production Speed
The production speed can reach up to 450 bags/min, efficiently meeting production demands while reducing labor costs.

Samples of Valve Bag

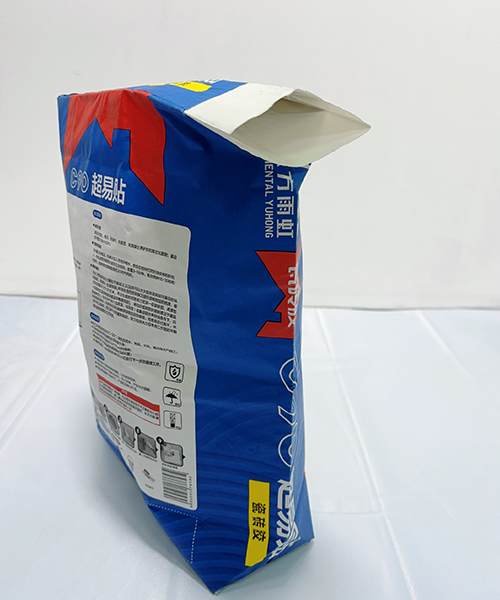

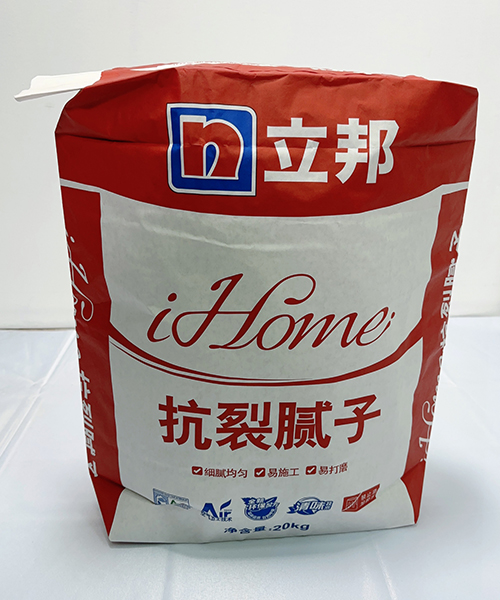

Ultrasonic sealed valve paper bag for filling wall putty powder

Ultrasonic sealed valve bag for filling wall putty powder

PE valve paper bag for filling tile adhesive powder

PE valve bag for filling tile adhesive powder

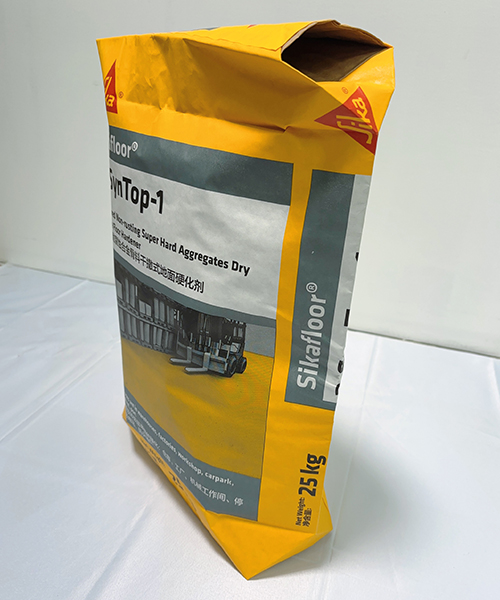

Self-closing valve paper bag for filling aggregate

Self-closing valve bag for filling aggregate

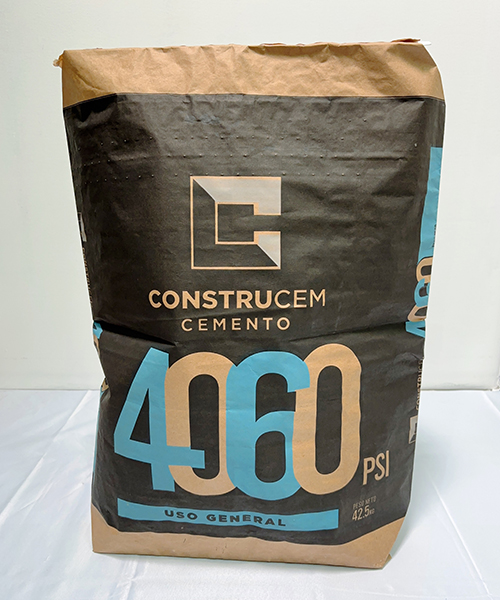

Self-closing micro-perforated paper bag for filling cement

Self-closing micro-perforated bag for filling cement
